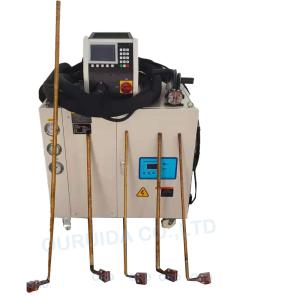

Handheld Intelligent Induction Bolt Heater
Features:
1. This equipment uses the digital signal processing (DSP) digital real-time high-speed signal processor and DDS (Direct Digital Synthesizer) direct digital frequency synthesizer. Infieneon IGBT type.
2. 50m Flexible Cables connect to the machine, can work the workpiece is far from the machine, and not reduce the working power.
3. High temperuture: the heating temperature can reach over 1200C.
4. Quick Heating: Reach the target temperature quickly!
5. Various material useing: Applicable to all kinds of metal material, such us: stainless steel, carbon steel, copper, brass, alumimum, Zinc, tin, titanium and so on.
6. Hand-hold coaxial transformer:Easy to hand hold work, can also automatically intgrate into the robot arm.
7. Quick change coil/inductor:induction coil/indcutor made into different shapes and sizes, and can be easily removed from HHT TO replace another coil.
8. Small size, light weight, high protection, high precision, protable simple and convenient,
9. R485 communication.
10. Induction Heating Machine have remote control function and adopt digital circuit control, power regulation can be adjusted from 0% to 100% resolution, and digital PID temperature control module can be configured to set the target temperature of workpiece (infrared temperature measurement or thermocouple temperature measurement) automatically. The accuracy of temperature control is + 1'C for power regulation in heating process.
Data Sheets:
| Type | DSP-50KW |
| Rated Output Power | 50KW |
| Rated Output Frequency | 10-40KHZ |
| Can expand frquency | 1-100khz |
| Overload Heating time | 45%/10min |
| Power Adjust Arrange | 1.5-100% |
| Coaxial Flexible cable length | 50M |
| Input Voltage | 415V*3phase 50-60hz |
| Max power | 50kw |
| Protection Level | IP54 |
| Environment Temperature | +5c--+50C |
| Cooling water flow | 21L/MIN |
| Cooling water Pressure | 4-8Bar |
| Weight | About 80kg |
Application:
1. Heat Boiler and Turbine Bolts
2. Brazing, Soldering, Welding copper plate with copper pate, Copper pipe and copper pipe. such frige, air Conditioner repair or installation. Steel with Copper, Steel with Steel and so on.
Advantage:
1 Easy to operate, can programme
2 High Waterproof.
3 Can bear high temperature, allow the max environment temperature reach to 180C.
4 High safty.
5 Full digital
6 Anti-interference.
Control Function:
Main wire Switch
Main Part Switch
Remote Switch
Water Pressure Protection
Water flow Protection
System safty Protection
Chiller's Failure Autognosis
Phase protection
Timmer Switch
Over-heating protection
Over-voltage protection
Over-current Protection
Frequency protection
Power can programme
Display function:
Temperature Checking Disply
Time setting Display
Working Model Display
Working state display
User paramater display
Failure inquire disply
After-sale service:
1. Warranty time: Within 18 months from the date of delivering, 12months from date of receiving.
2. Within warranty all parts are free for customer, any fault caused by non artificial reason, any quality problems such as design,
manufacture, or procedure occurs, We shall provide replacement parts after detecting the faults.
3. If any big quality problems occurs out of the guarantee period, we will send maintenance
technician to provide visiting service after checking with the customer and charge for a favorable price.
5. We will provide a lifetime cost price to the buyer with the materials and spare parts used in system operation, equipment
maintenance.
6. The above mentioned are only basic aftersale service requirements,we will make more promises related to quality assurance and operation guarantee.
